HCL Adiabatic Absorption

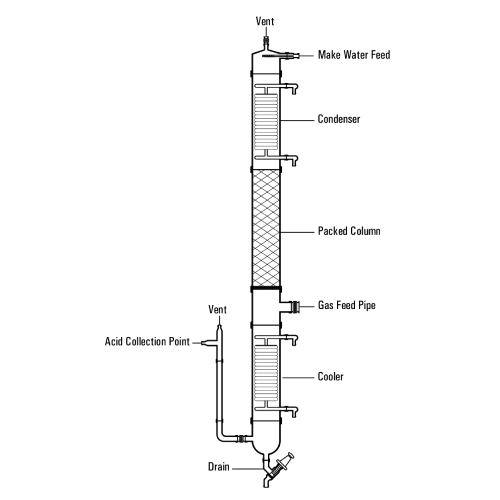

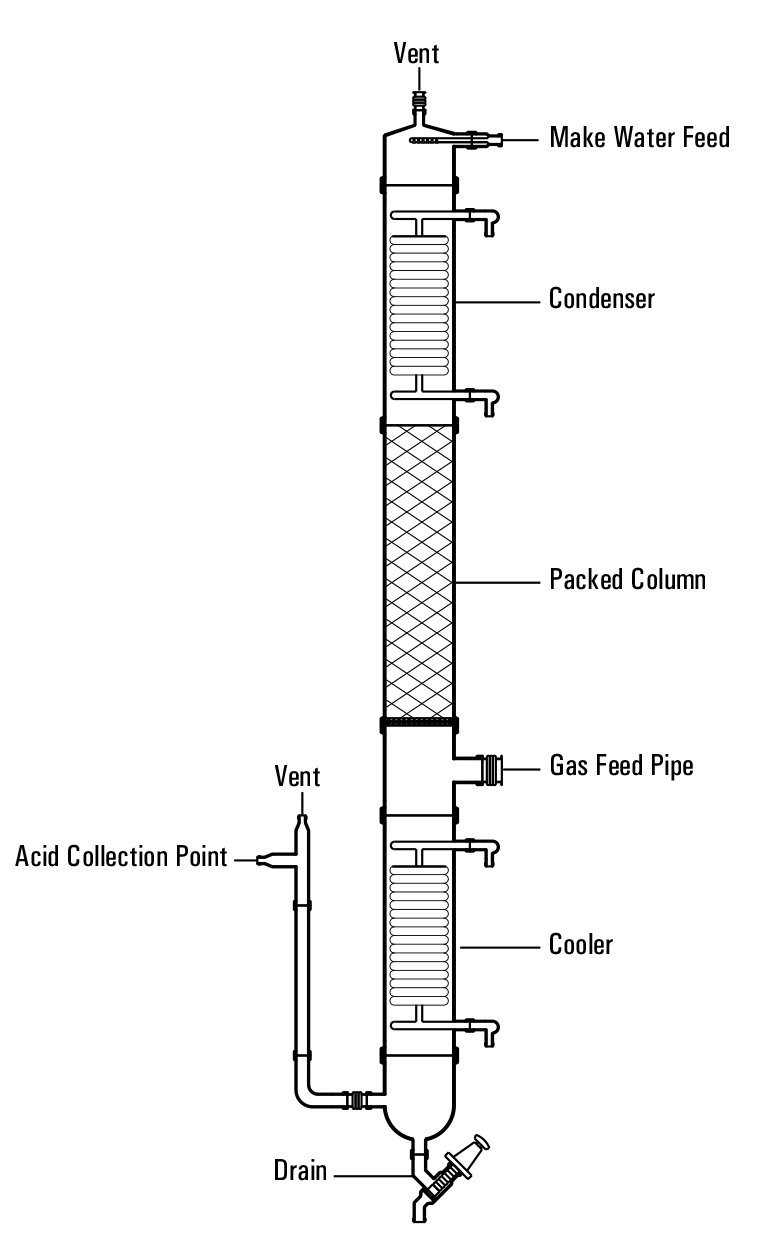

HCl absorption columns are used for absorption of Hydrochloric gas, which statutorily are not permitted to vent in to the atmosphere, and to produce the HCl acid. The column is constructed with a series of packed sections, a gas introduction point below that, a condenser on the top, and a cooler at the bottom. Make water is sprayed from the top and acid is collected from the bottom.

HCl absorption column are available in 80DN to 300DN diameter (for the gas rate 10Kgs/hr to 300Kg/hr approx..)

Unit Cat. Ref.

Packed Column

Condenser HTA M²

HCl Gas Rate


80mm x 3mtr.

0.35 x 2

10 Kg / Hr.


100mm x 4mtr.

0.5 x 2

20 Kg / Hr


150mm x 4mtr

1.5 x 2

60 Kg / Hr.


225mm x 4.5mtr

2.5 x 2

150 Kg / Hr.


300mm x 4.5mtr.

4.0 x 2

300 Kg / Hr

Column Section With Inbuilt Packing Support

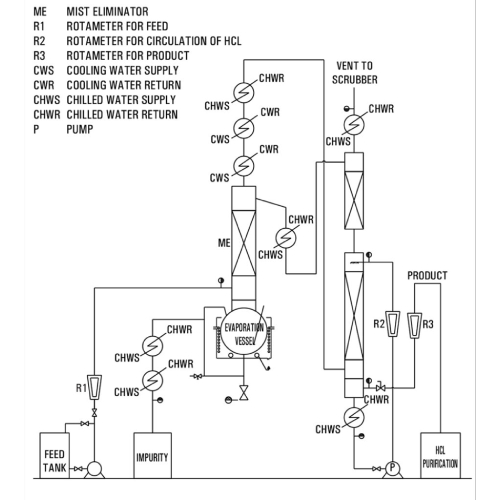

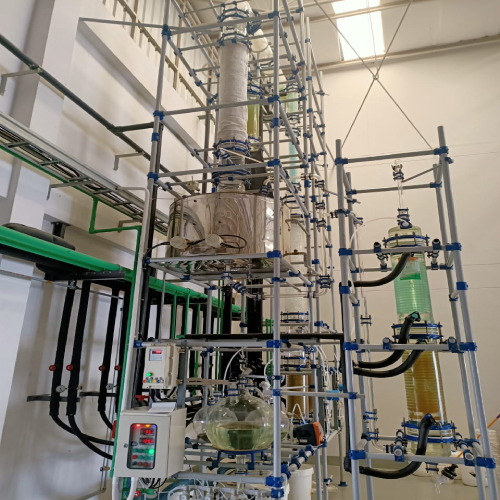

HCL Purification System
Nitric Acid Purification System
HCL Adiabatic Absorption

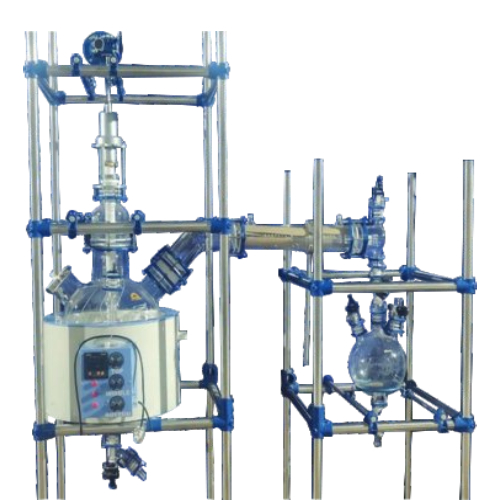

Essential Oil Distillers
