Glass Valves

A wide variety of valves are described in this section. All the valves are made of Borosilicate Glass body & PTFE plug so that process fluid just comes in contact with Glass & PTFE only. Borosilicate Glass body permits the visual checking of the operation

All the valves are suitable for operation under full vacuum conditions & a maximum temperature of 200’C. Borosilicate Valves are available from DN15 to DN50.

Bigger size valves are available on request

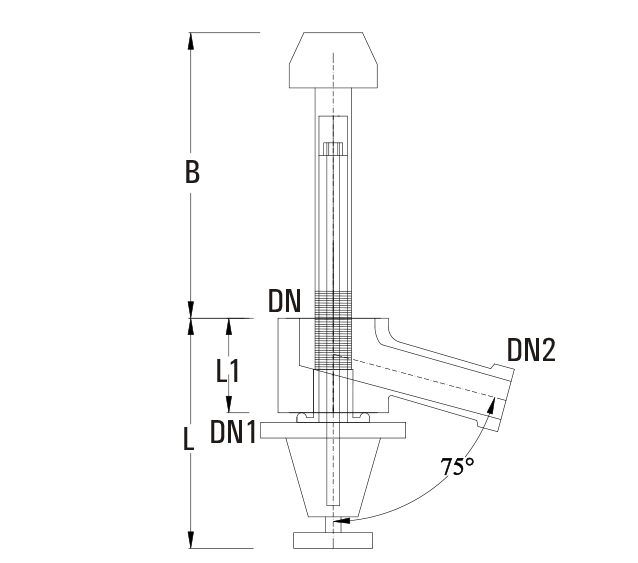

Spacer Bottom Outlet Valves

Cat. Ref.

DN

DN1

DN2

L1

L

B

SBAL1

25

25

15

40

110

175

SBAL1.5

40

40

25

60

160

175

SBAL2

50

50

40

60

160

175
