Pilot Plant Solutions
Goel Impex offers multipurpose pilot plant, advanced pilot plant solutions designed for chemical and pharmaceutical industries that require process development, scale-up, process simulation, and kilo-scale production under cGMP and non-GMP conditions.
Our pilot plants are built to support batch and semi-batch operations, making them ideal for research, development, and production environments.
These systems are engineered for solid and liquid charging, reaction, heating and cooling, rectification, and reflux control providing complete flexibility in process execution.

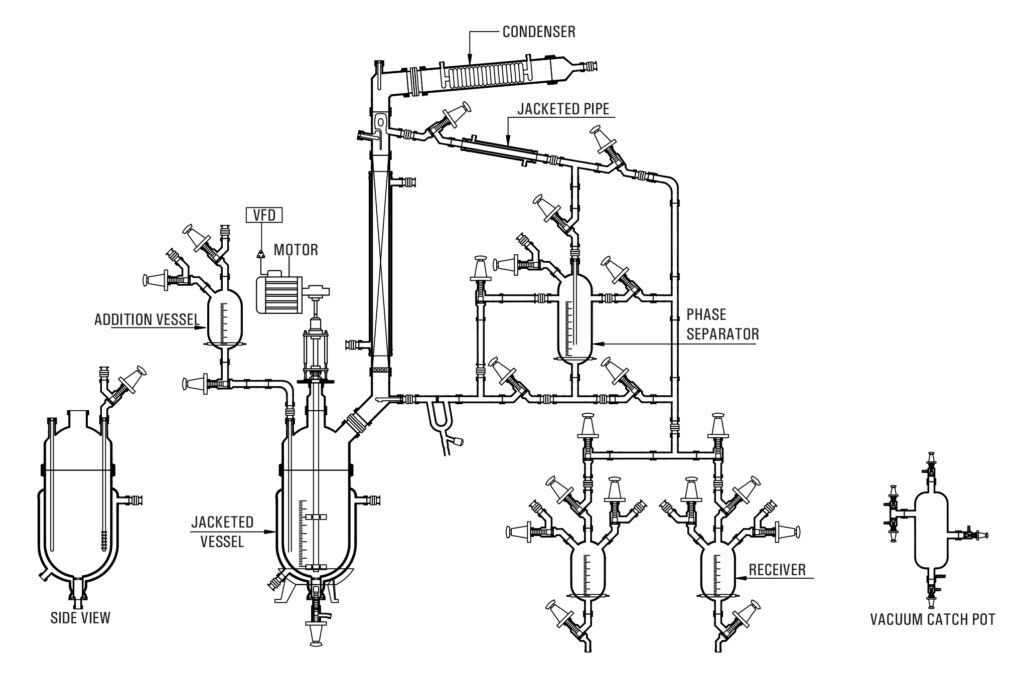

Pilot Plant Design
Every multi purpose pilot plant from Goel Impex is crafted with a modular design that allows easy modification based on specific process requirements.
Whether for chemical synthesis, process scale-up, or product optimization, our systems provide reliable, scalable performance.
Our multi-purpose pilot plant is available with a range of essential components and configurations to suit diverse industrial needs:
1. Jacketed Full Glass Reactor, Cylindrical Full Glass Reactor, or Spherical Full Glass Reactor integrated with an oil heating and cooling bath.
2. Multipurpose Glass Distillation Overhead for efficient distillation and condensation processes.
3. Robust Supporting Frame made from Stainless Steel, MS epoxy coated, or MS painted structure.
4. Models available in Flameproof, Non-Flameproof, cGMP, and Non-GMP designs.
5. Superior Corrosion Resistance for enhanced durability.
6. Digital Temperature Controller for precise process control.
7. Gas Purging System, Solid Charging, and Multi-Liquid Addition capability.
8. Integrated Vacuum and Exhaust Piping.
9. Additional Feeders and Receivers for process flexibility.
10. Dedicated Solid Feeding Arrangements.
|
Unit |
Reduction |
Bath KW |
Addition |
Vapour |
Condenser |
Cooler |
Receiver Size |
|
MPU 20 |
20 L |
4.5 |
2 L |
80 DN |
0.35 |
0.10 |
2L, 5L |
|
MPU 50 |
50 L |
6.0 |
5 L |
100 DN |
0.50 |
0.20 |
5L, 10L |
|
MPU 100 |
100 L |
9.0 |
10 L |
150 DN |
1.50 |
0.35 |
10L, 20L |
|
MPU 200 |
200 L |
12.0 |
20 L |
150 DL |
1.50 |
0.35 |
10L, 20L |
|
MPU 300 |
300 L |
16.0 |
20 L |
225 DL |
2.50 |
0.50 |
20L, 20L |
*marked items are available fast.
Applications of Pilot Plants
A pilot plant can be used for a wide range of applications, including:
• Process Development and Optimization
• Process Scale-Up Techniques
• Testing Process Feasibility Before Full-Scale Production
• Chemical Reaction Studies
• Distillation and Separation Trials
• Kilo Lab and Pilot Plant Manufacturing
Importance and Objectives of a Pilot Plant
The main objectives of a pilot plant are to verify laboratory findings on a pilot plant scale, simulate actual production conditions, and ensure safe, efficient, and cost-effective scaling before commercial rollout.
Our designs emphasize accuracy, control, and process reliability, key factors for successful pilot plant scale-up.
Difference: Kilo Lab vs Pilot Plant
While a kilo lab focuses on small-scale synthesis and optimization, a pilot plant bridges the gap between laboratory research and full-scale production.
Goel Impex offers both, ensuring your project progresses efficiently from concept to commercial manufacturing.
As one of the leading pilot plant manufacturers, exporters, and suppliers, Goel Impex provides innovative design, quality glass fabrication, and customized process solutions.
Our team specializes in pilot plant design, installation, and commissioning, ensuring seamless integration with your existing systems.
We deliver world-class pilot plant solutions and equipment trusted by chemical, pharmaceutical, and R&D industries worldwide.
At Goel Impex, we understand that every process is unique. Our pilot plants are engineered to provide flexibility, safety, and scalability helping you achieve reliable process validation and smoother transition to industrial production.
Experience precision engineering with Goel Impex, your trusted partner for advanced pilot plant solutions.
