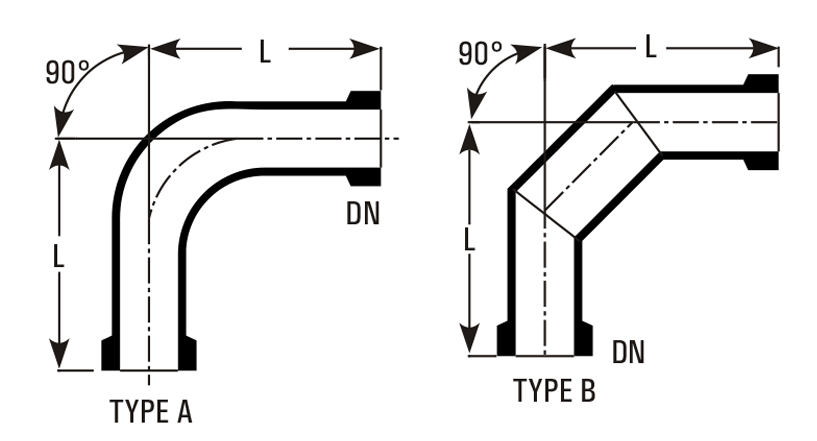

Cat.Ref.
|
DN
|
L
|
TYPE
|
||
|
PB0.5/90
|
12
|
50
|
A
|
||
|
PB0.7/90
|
15
|
50
|
A
|
||
|
PB1/90*
|
25
|
100
|
A
|
||
|
PB1.5/90*
|
40
|
150
|
A
|
||
|
PB2/90*
|
50
|
150
|
A
|
||
|
PB3/90*
|
80
|
200
|
B
|
||
|
PB4/90*
|
100
|
250
|
B
|
||
|
PB6/90*
|
150
|
250
|
B
|
||
|
PB9/90 *
|
225
|
375
|
B
|
||
|
PB12/90 *
|
300
|
450
|
B
|
||
Bends in 80 and 100 degree are also available with same dimensions.
Bends DN 400/DN 450/DN 600 on request basis.
|

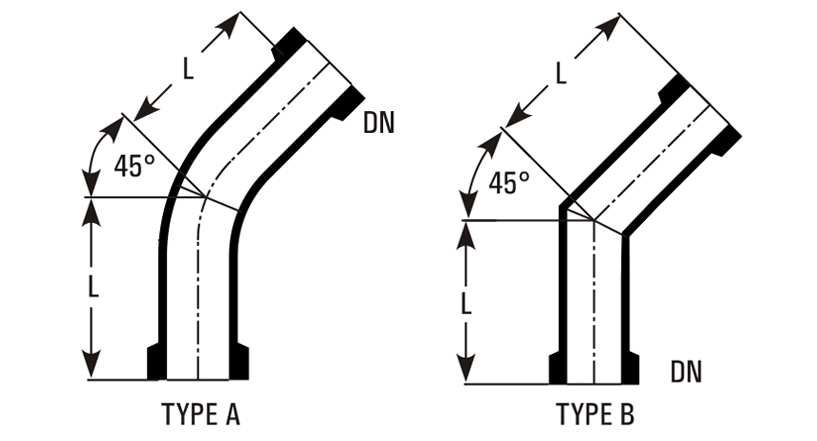

Cat.Ref.
|
DN
|
L
|
TYPE
|
||
|
PB0.5/45
|
12
|
50
|
A
|
||
|
PB0.7/45
|
15
|
50
|
A
|
||
|
PB1/45
|
25
|
75
|
A
|
||
|
PB1.5/45
|
40
|
100
|
A
|
||
|
PB2/45
|
50
|
100
|
A
|
||
|
PB3/45
|
80
|
125
|
B
|
||
|
PB4/45
|
100
|
175
|
B
|
||
|
PB6/45
|
150
|
250
|
B
|
||
|
PB9/45
|
225
|
375
|
B
|
||
Bends in 10 and 30 degree are also available with same dimensions.
|

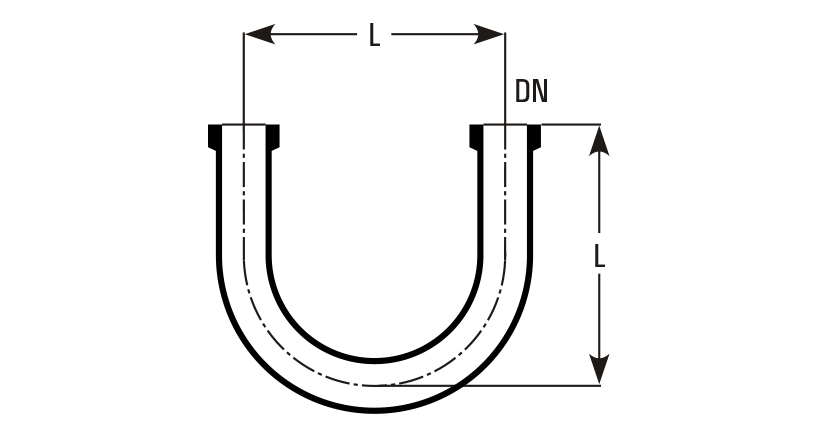

Cat.Ref.
|
DN
|
L
|
|||
|
PU0.5
|
12 | 75 | |||
|
PU0.7
|
15 | 75 | |||
|
PU1*
|
25 | 150 | |||
|
PU1.5*
|
40 | 175 | |||
|
PU2
|
50 | 175 | |||
|
PU3
|
80 | 225 | |||
|

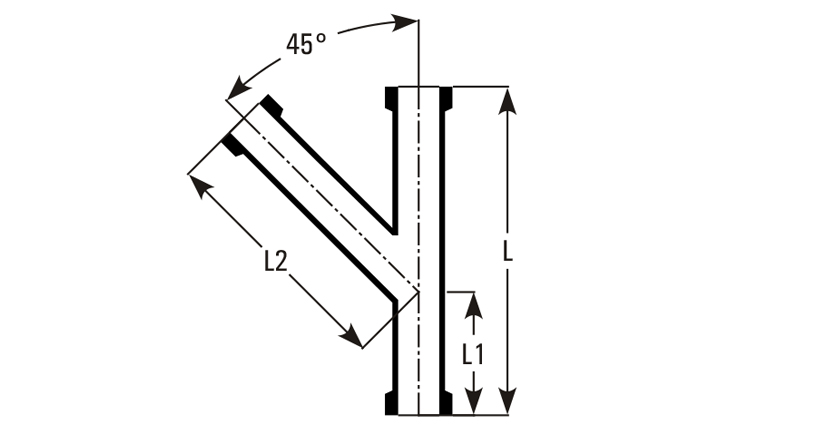

Cat.Ref.
|
DN
|
L
|
L1
|
L 2
|
|
|
PY0.5
|
12
|
125
|
50
|
80
|
|
|
PY0.7
|
15
|
125
|
50
|
80
|
|
|
PY1
|
25
|
200
|
75
|
150
|
|
|
PY1.5
|
40
|
250
|
100
|
175
|
|
|
PY2
|
50
|
300
|
125
|
200
|
|
|
PY3
|
80
|
350
|
150
|
250
|
|
|
PY4
|
100
|
450
|
150
|
350
|
|
|

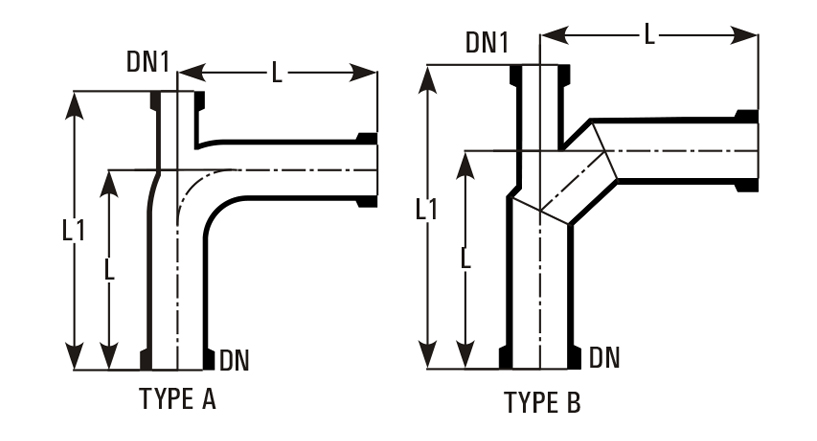

Cat.Ref.
|
DN
|
DN1
|
L
|
L1
|
TYPE
|
|
PBT1.5
|
40
|
25
|
150
|
225
|
A
|
|
PBT2
|
50
|
25
|
150
|
225
|
A
|
|
PBT3 *
|
80
|
25
|
200
|
275
|
B
|
|
PBT4 *
|
100
|
25
|
250
|
325
|
B
|
|
PBT6 *
|
150
|
25
|
250
|
325
|
B
|
|
PBT9 *
|
225
|
25
|
375
|
490
|
B
|
|
PBT12 *
|
300
|
25
|
450
|
560
|
B
|
|

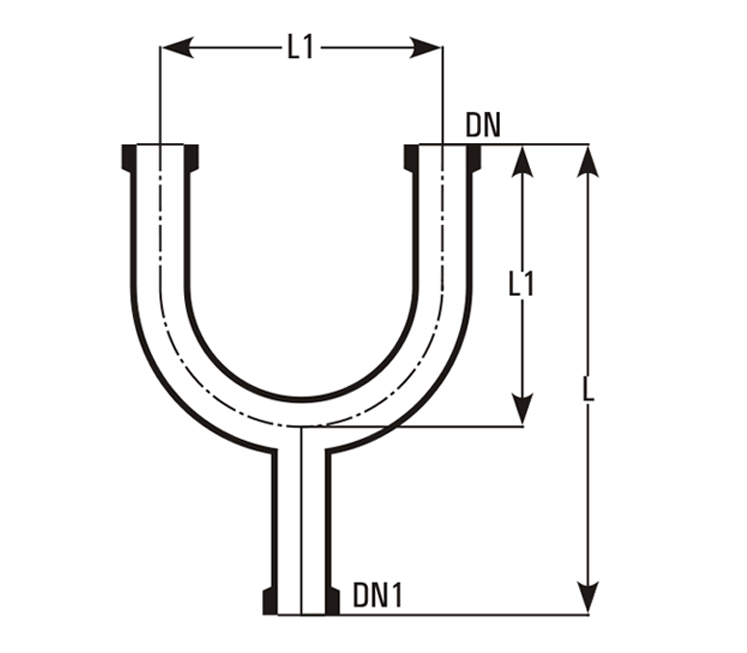

Cat.Ref.
|
DN
|
DN1
|
L
|
L1
|
|
|
PUO0.5
|
12
|
12
|
150
|
100
|
|
|
PUO1/0.5
|
25
|
12
|
250
|
150
|
|
|
PUO0.7
|
15
|
15
|
150
|
100
|
|
|
PUO1/0.7
|
25
|
15
|
250
|
150
|
|
|
PUO1*
|
25
|
20
|
250
|
150
|
|
|
PUO1.5*
|
40
|
40
|
275
|
175
|
|
|
PUO1.5/1
|
40
|
25
|
275
|
175
|
|
|
PUO2
|
50
|
50
|
275
|
175
|
|
| PUO2/1 | 50 | 25 | 275 | 175 | |
| PUO3/1 | 80 | 25 | 350 | 225 | |
* marked items are available fast.
