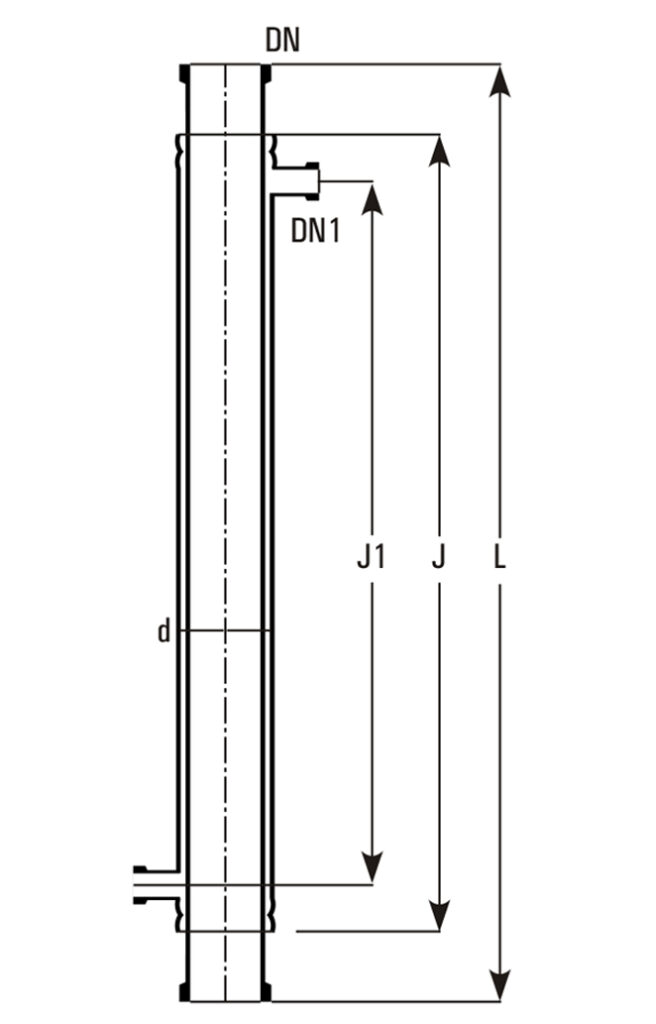

Jacketed Pipe Sections

Glass Jackets

For heating of pipe and for controlling the temperature throughout the column, the jacketed pipe sections are provided. Glass jacket is sealed to the pipe section using Viton ‘O’ ring and other sealing compositions. The seal prevents impermissibly high stresses between two tubes and allows the movement which comes due to thermal expansion. Maximum operating pressure in the jacket :

DN 80 – DN 150
1.0 bar
DN 225 – DN 300
DN 225 – DN 300
Cat.Ref.
DN
L
d
DN1
J
J1
 PSD3/1000
80
1000
100
25
850
750
 PSD4/1000
100
1000
150
25
850
750
 PSD6/1000
150
1000
225
25
850
700
 PSD9/1000
225
1000
300
25
850
700
 PSD12/1000
300
1000
400
25
850
650

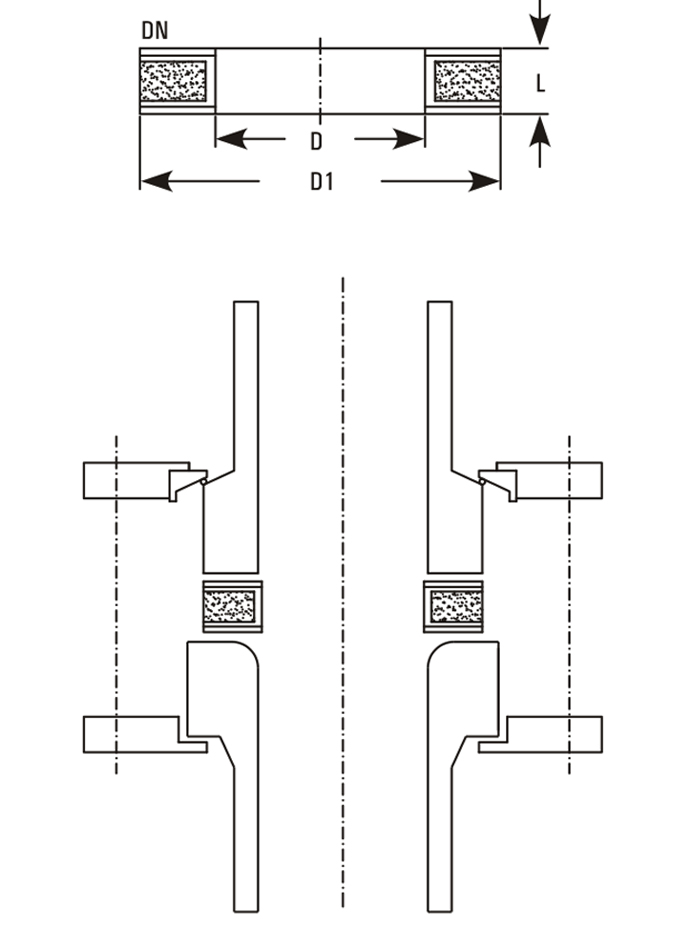

ADAPTOR PLATE FOR REACTORS

When reactors have a curved end nozzle, these adaptors are used as interface spacer to connect the glass/bellow with reactor.

A flat metal ring with rubber cusions is enveloped with PTFE , to provide ideal sealing. Only PTFE comes in thecontact of process fluid.

Cat.Ref.
DN
D
D1
L
 EMP1
25
25
60
10
 EMP1.5
40
37
80
10
 EMP2
50
50
100
10
 EMP3
80
75
120
12
 EMP4*
100
100
155
12
 EMP6*
150
150
210
12
 EMP9*
225
200
260
15
 EMP12*
300
300
360
15

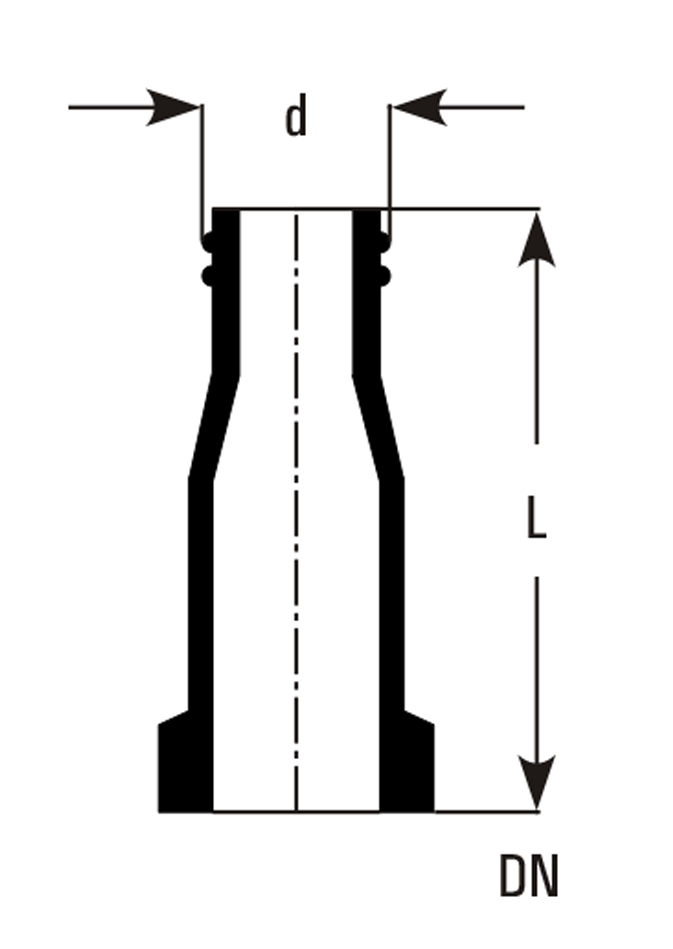

HOSE CONNECTORS
Cat.Ref.
DN
Thread
d
L
 PHC0.5/0.25
12
GL14
13.75
70
 PHC0.7/0.25
15
GL14
13.75
70
 PHC1/1*
25
GL25
24.5
90
 PHC1/0.75
25
GL18
17.5
90
 PHC1/0.5
25
GL18
17.5
90
 PHC1/0.25
25
GL14
13.75
90
 PHC1.5/1
40
GL25
24.5
100
 PHC1.5/0.75
40
GL18
17.5
100

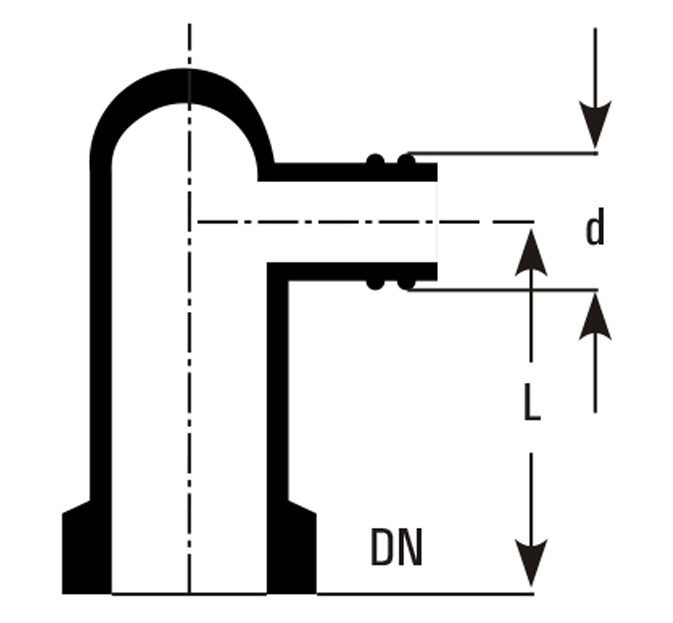

BEND HOSE CONNECTORS
Cat.Ref.
DN
Thread
d
L
 PBHC0.5/0.25
12
GL14
13.75
50
 PBHC0.7/0.75
15
GL14
13.75
50
 PBHC1/1*
25
GL25
24.5
60
 PBHC1/0.75
25
GL18
17.5
60
 PBHC1.5/0.75
40
GL18
17.5
75
 PBHC2/0.75
50
GL18
17.5
100
