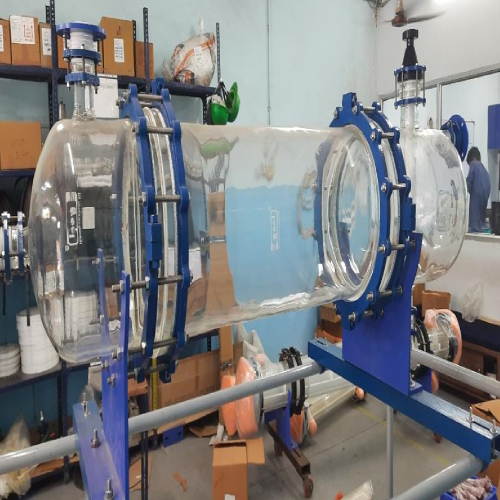

Decantors Vessels

The mixture of liquids is continuously fed in the Decantor at low velocity. This allow sufficient residence time for the formation of separate layers. The light phase liquid is continuously removed from the light phase outlet at the top. The heavy phase liquid enters the dip pipe at lower end and overflow in the discharge pipe and is removed from the bottom.

Goel’s Decantor provides continuous separation, visual monitoring, and ensure separation even after feed is stopped.

Decantors can be provided with Adjustable overflow valve, (Type B) to adjust the position of interface for different operating situations.

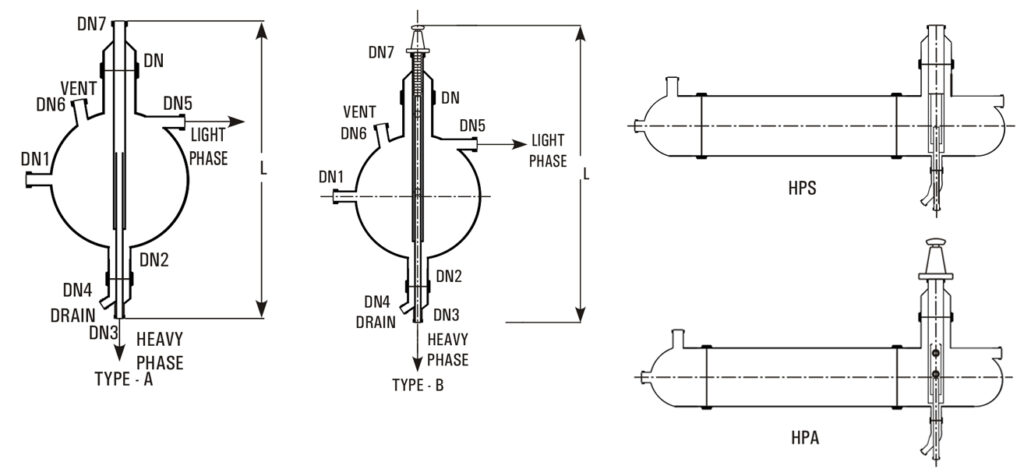

Inlet

Heavy Phase Outlet

Drain

Light hase Outlet

Vent

Cat. Ref.

Nominal Capacity

L

DN

DN1

DN2

DN3

DN4

DN5

DN6

DN7

Type

SPS20

20 L

800

80

25

50

25

25

25

25

50

A

SPS50

50 L

1025

100

40

50

25

25

40

40

50

A

SPS100

100 L

1175

150

40

50

25

25

40

40

50

A

SPS200

200 L

1475

225

40

50

25

25

40

40

50

A

SPA20

20 L

1000

80

25

50

25

25

25

25

50

B

SPA50

50 L

1225

100

40

50

25

25

40

40

80

B

SPA100

100 L

1375

150

40

50

25

25

40

40

80

B

SPA200

200 L

1675

225

40

50

25

25

40

40

80

B
