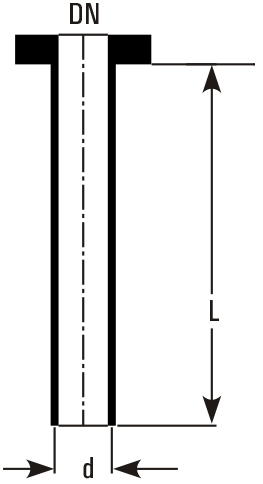

Dip pipes are used as liquid inlet for spherical vessels.
|
Cat.Ref. |
For Vessel |
DN |
DN1 |
d |
L |
|
DP20/1* |
20 L |
25 |
25 |
12 |
300 |
|
DP50/1.5* |
50 L |
40 |
25 |
19 |
400 |
|
DP100/1.5* |
100 L |
40 |
25 |
19 |
500 |
|
DP200/1.5* |
200 L |
40 |
25 |
19 |
600 |

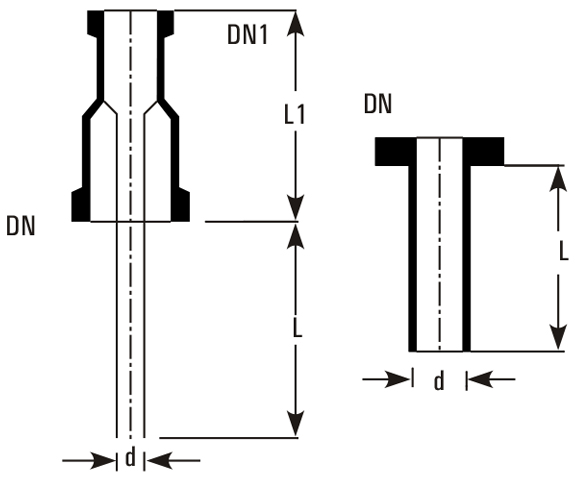

Short dip pipes are used as re-entry tubes for vessels, heat exchangers etc.
|
Cat.Ref. |
DN |
DN1 |
d |
L |
L1 |
|
DP1/1 |
25 |
25 |
12 |
100 |
100 |
|
DP1.5/1 |
40 |
25 |
19 |
100 |
100 |
|
DP1.5/1.5 |
40 |
40 |
19 |
100 |
100 |
|
DP2/1 |
50 |
25 |
25 |
100 |
100 |
|
DP2/1.5 |
50 |
40 |
25 |
100 |
100 |
|
DP3/1.5 |
80 |
40 |
37 |
100 |
125 |
|
DP4/1 |
100 |
25 |
25 |
100 |
150 |
|
DP4/2 |
100 |
50 |
50 |
100 |
150 |

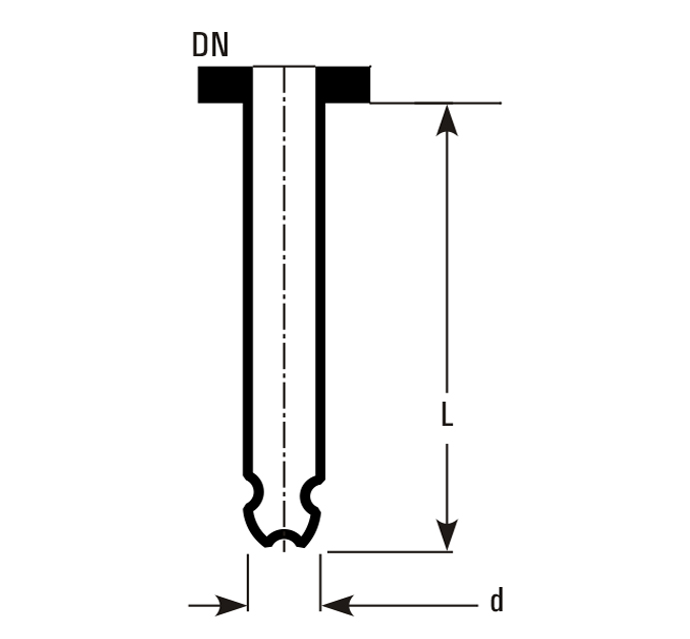

Gas Spargers are used for gas feed/sparging in the vessels.
|
Cat.Ref. |
For Vessel |
DN |
DN1 |
d |
L |
No.of Holes |
|
SPG20/1 |
20 L |
25 |
25 |
12 |
300 |
5x1mm |
|
SPG50/1.5 |
50 L |
40 |
25 |
19 |
400 |
5x1mm |
|
SPG100/1.5 |
100 L |
40 |
25 |
19 |
500 |
5x1mm |
|
SPG200/1.5 |
200 L |
40 |
25 |
19 |
600 |
5x1mm |
|

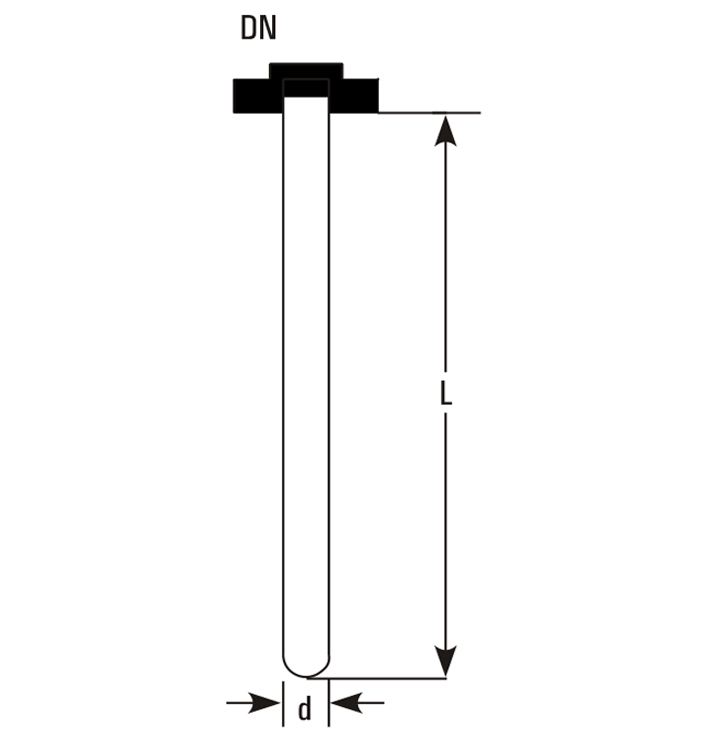

Cat.Ref. |
For Vessel |
DN |
d |
L |
|
TP20/1* |
20 L |
25 |
12 |
300 |
|
TP50/1.5* |
50 L |
40 |
19 |
400 |
|
TP100/1.5* |
100 L |
40 |
19 |
500 |
|
TP200/1.5* |
200 L |
40 |
19 |
600 |
