For Vessels (In Vessels Holders)

Structure and Support

For vessels (IN VESSEL HOLDERS)

Size (Litres)

Recommended tube size NB (mm)

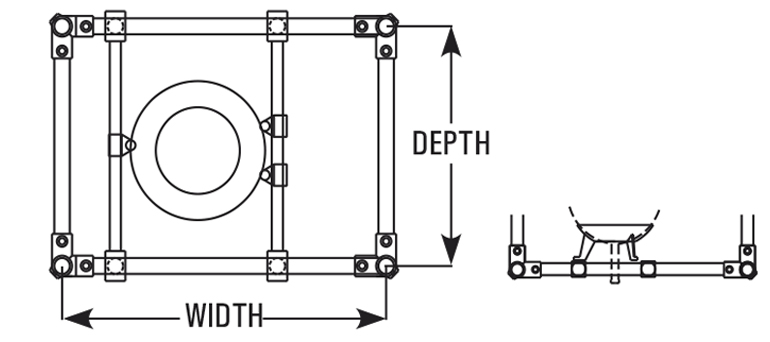

Minimum Structure size Depth X Width

20

25

500 x 600

50

25

600 x 800

100

25,30

1000 x 1000

200

30

1000 x 1000

Download PDF
