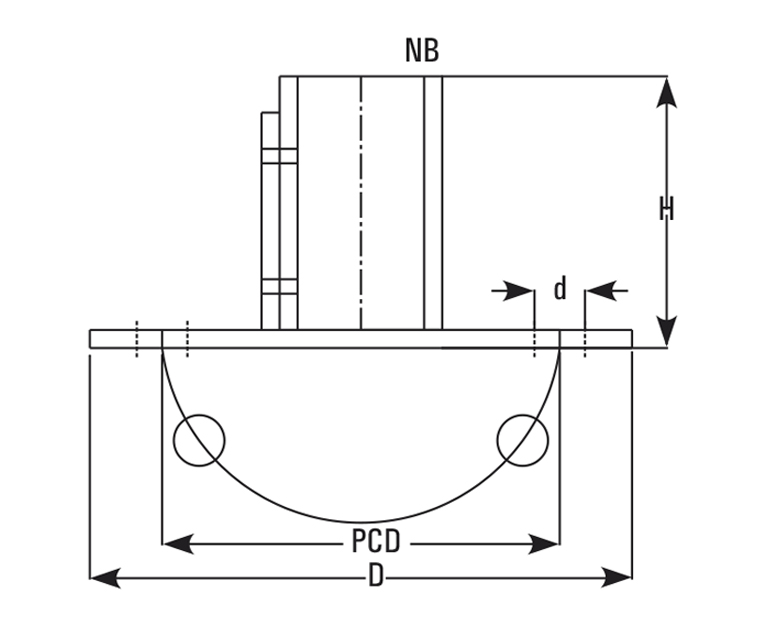

STRUCTURE FITTINGS - BASE

These are to be used with vertical tubes. Holes are provided for foundation.

Cat.Ref.

NB

D

H

PCD

dØ

 BS25*

25

150

75

110

4 x 14Ø

 BS30*

30

150

75

110

4 x 14Ø

 BS40

40

150

75

110

4 x 14Ø

 BS50

50

175

75

125

4 x 14Ø
